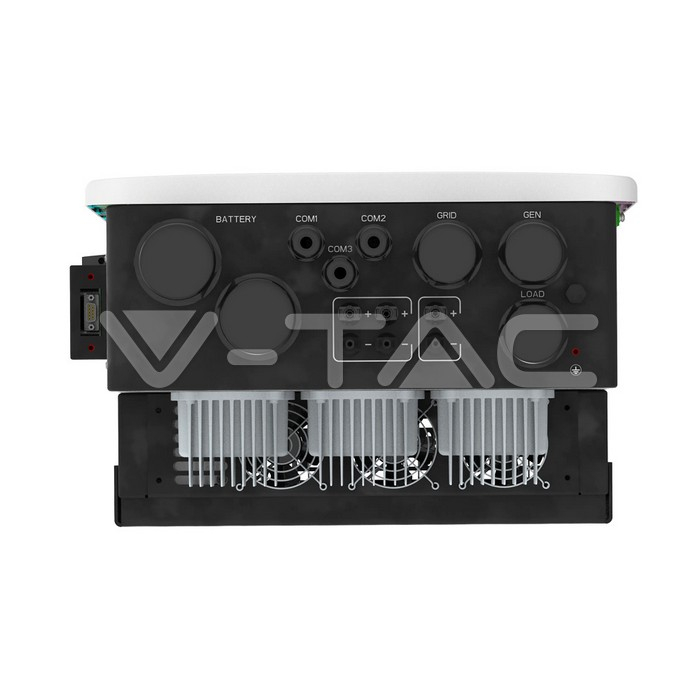

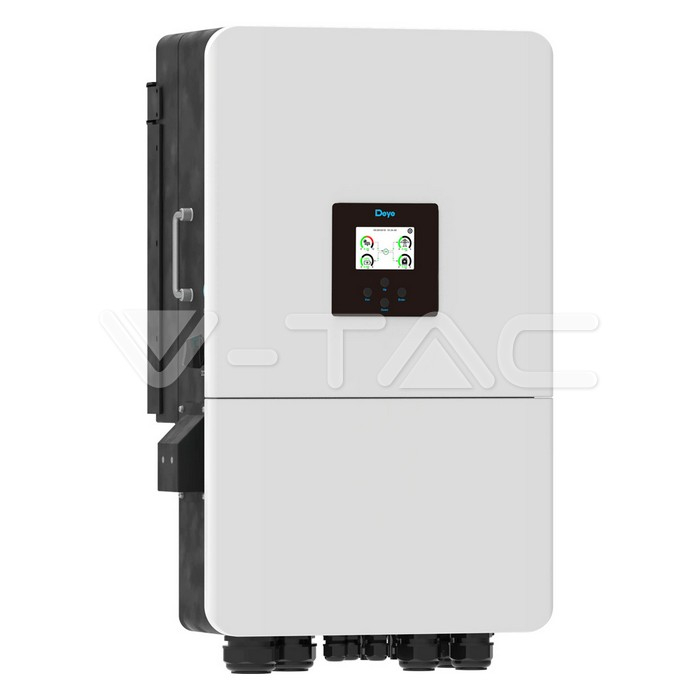

Invertor Deye SUN-20K-SG05LP3-EU-SM2 20kWh, IP65, Trifazat, Hibrid, 10 ani Garantie, Display LCD, Intrare pentru Generator, Low Voltage

Date electrice
Putere

• Max. Input Power: 30000W;
• Rated AC Input/Output Active Power: 20000W;
• Max. AC Input/Output Apparent Power (VA) 22000;

Curent

• Max. Operating PV Input Current (A): 36+20 ;
• Max. Input Short-Circuit Current (A): 54+30;
• Rated AC Input/Output Current (A): 30.4/29;
• Max. AC Input/Output Current (A): 30.4/29
• Max. Continuous AC Passthrough: 70A;

Voltaj

• Rated PV Input Voltage: 550V;
• MPPT Range: 160-650V;
• Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un;
• Start-up Voltage: 160V;

Frecvență
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Factor de putere
0.8 leading to 0.8 lagging
Capabilități
Rata IP
IP65
Condiții de lucru
`-40 to +60℃, >45℃ Derating
Dimimensiuni
Mărime
456×750×268.5 mm (Excluding Connectors and Brackets)
Date despre produs
Alt cod
12185
Codul Produsului
SUN-20K-SG05LP3-EU-SM2
Greutatea produsului
50.6 kg
Bucăți per cutie
1
Adițional
Dată de lansare
29.08.2024
Marcă
V-TAC
Garanție
10 ani
